Ferrite / Oxide Magnets

Ferrite magnets for stable, cost-effective B2B supply.

稳定、高性价比的铁氧体/氧化铁磁铁，适合B2B批量采购与定制。

Choose standard ceramic magnet shapes or request custom tooling for tile, block, ring, disc, and motor rotor applications.

CIYI manufacturing background: 20+ years of magnet product manufacturing history, three companies, two factories, and integrated design, development, production, and sales support.CIYI拥有20多年品牌历史，旗下3家公司、2家工厂，提供工艺设计、开发、生产和销售一体化支持。

Tile magnetsBlock magnetsRing magnetsOEM packing

Shape Categories / 形状分类

Ferrite magnets organized by product shape.

按形状浏览铁氧体磁铁产品。

Browse real product images by shape first, then send size, tolerance, quantity, magnetization direction, and packaging requirements for quotation.

ShapeArc

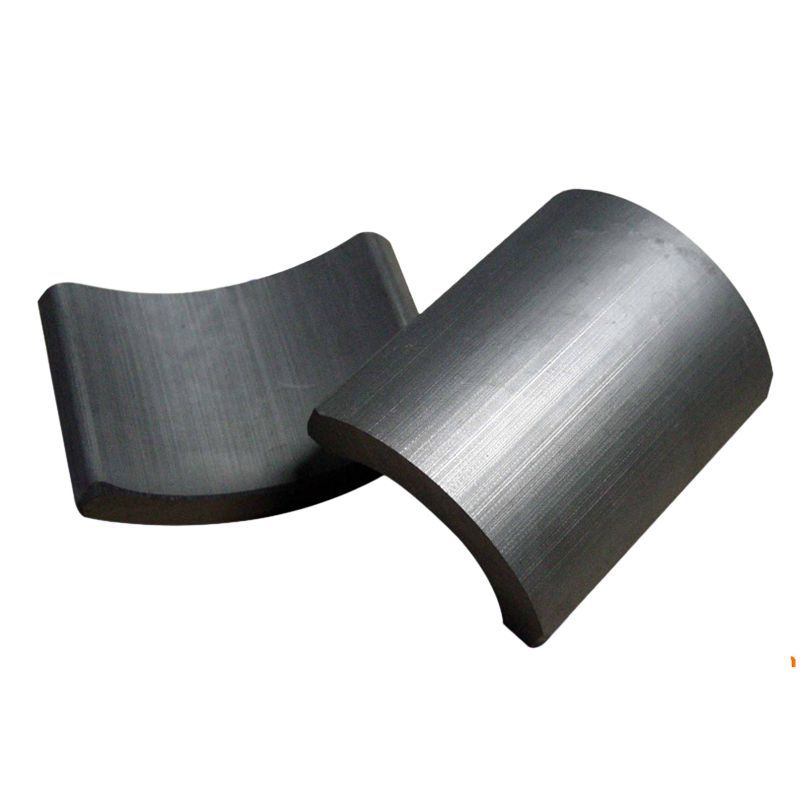

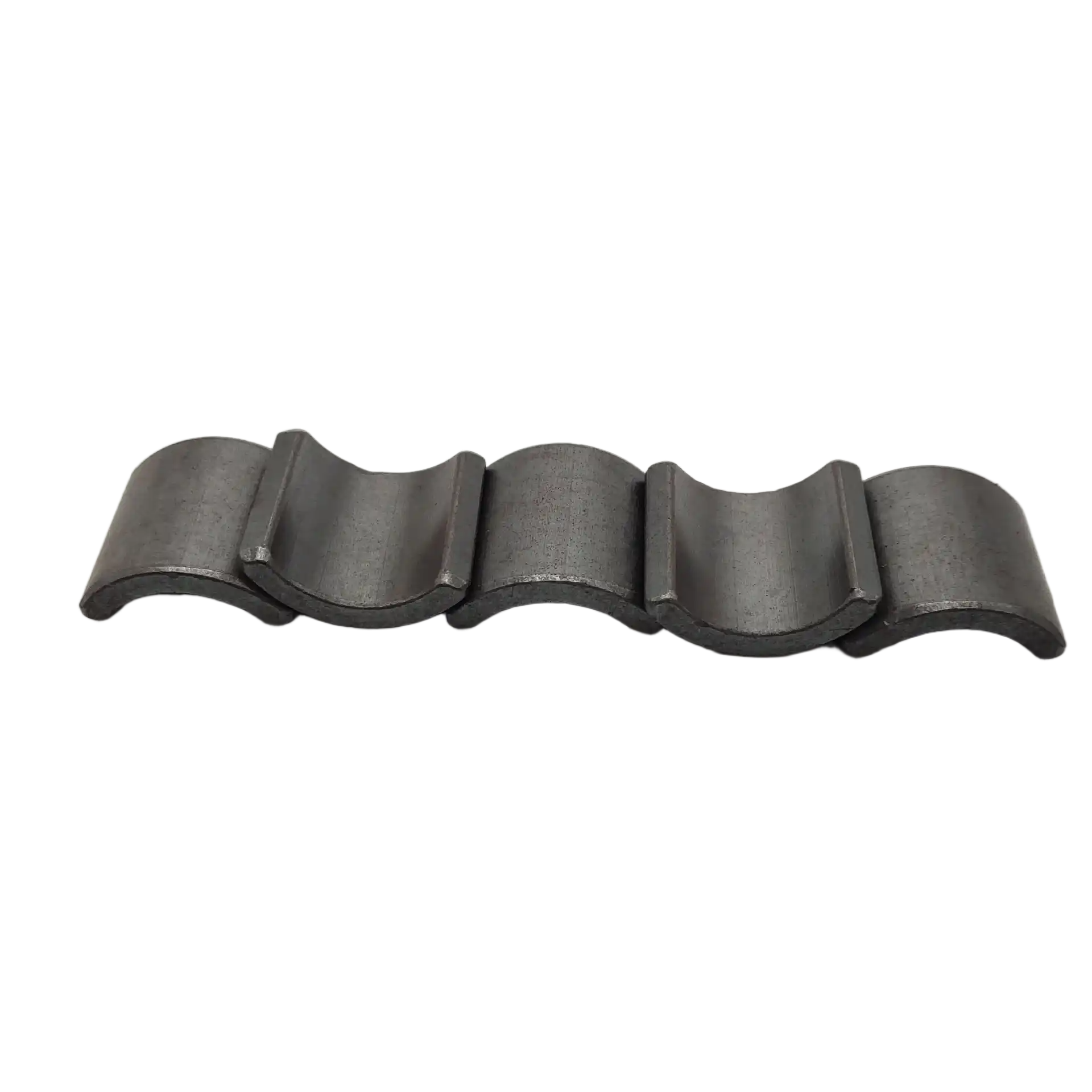

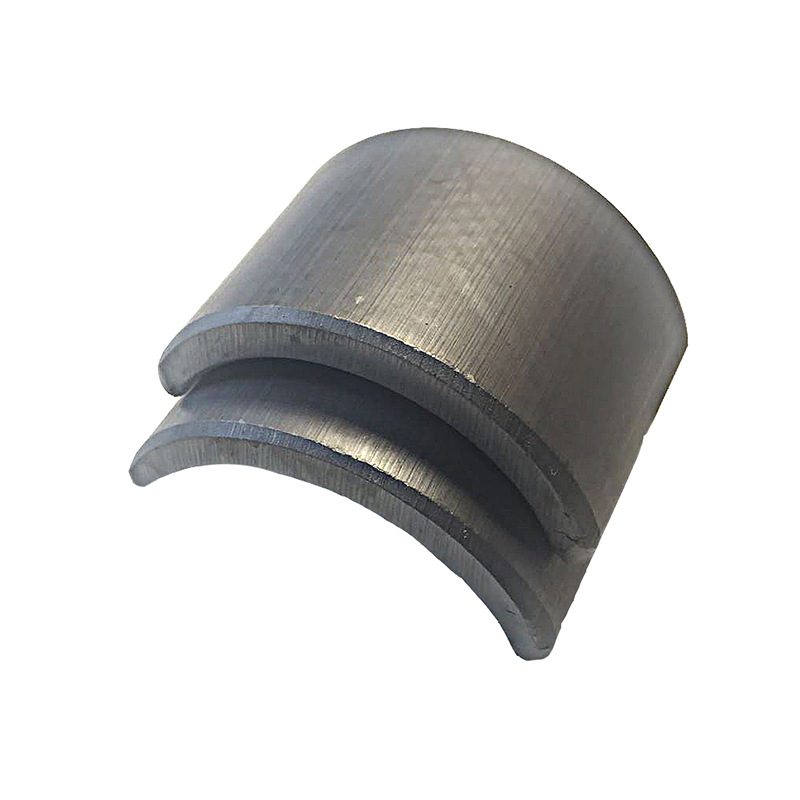

Ferrite Arc Magnets

Curved and segment ferrite magnets for motor rotor, education kits, fixtures, and assembled magnetic parts.

Ask for arc magnets

ShapeBlock

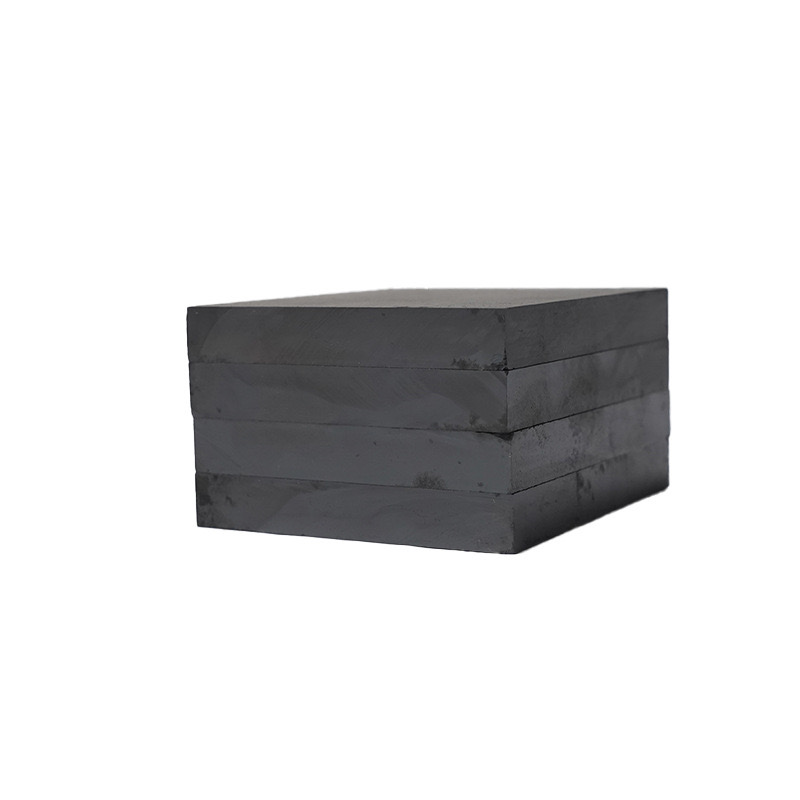

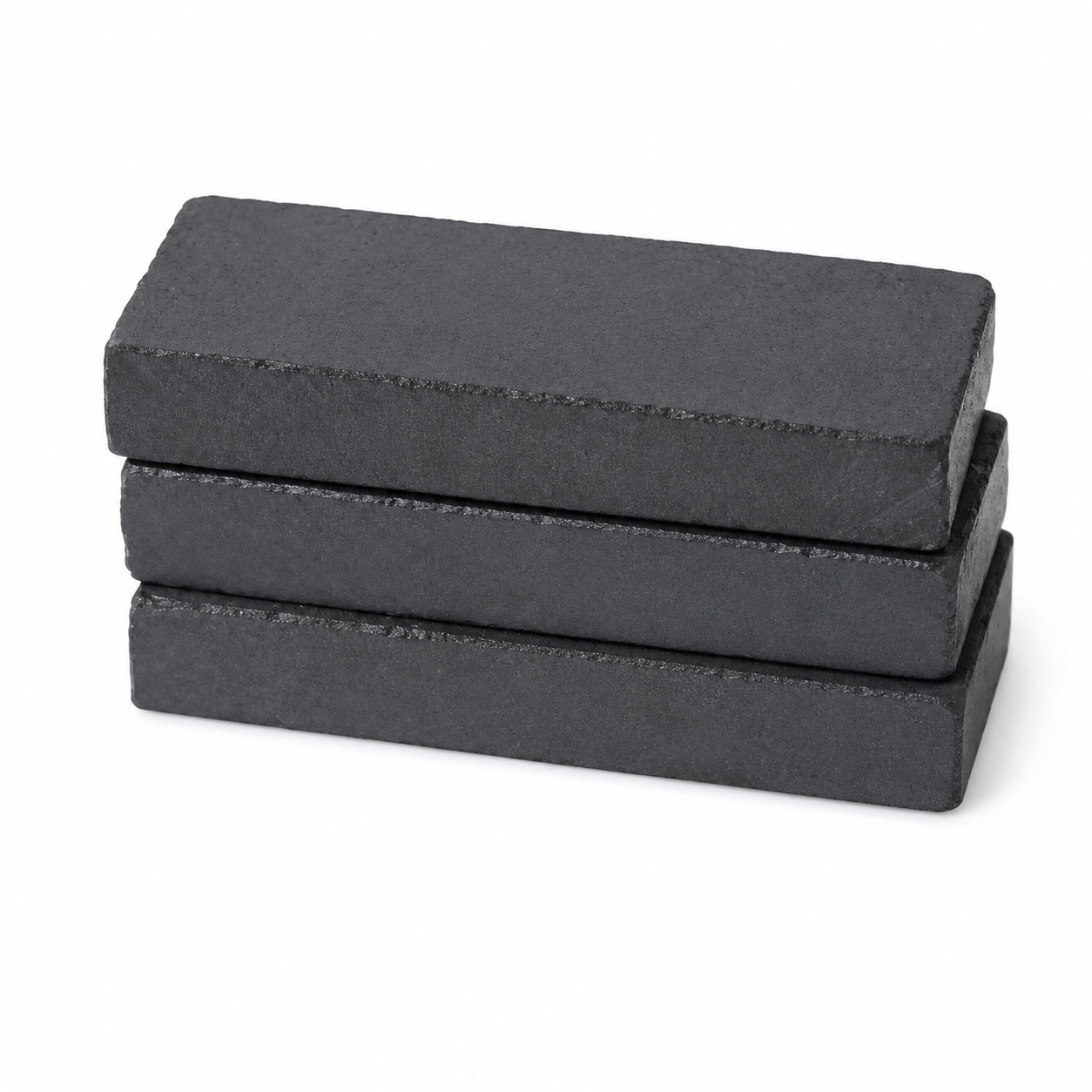

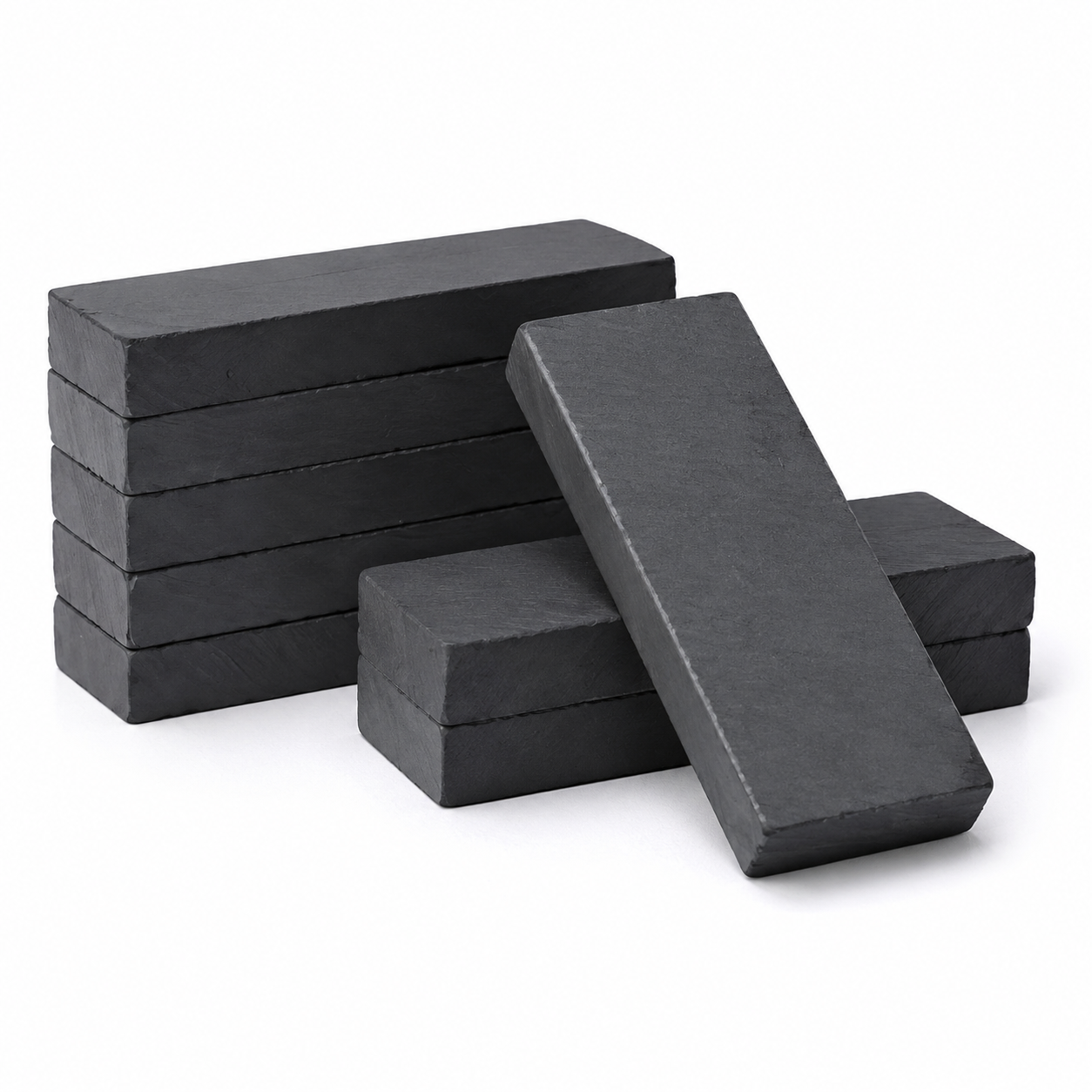

Ferrite Block Magnets

Rectangular, square, and bar ferrite magnets for bulk supply, craft parts, packages, and industrial holding.

Ask for block magnets

ShapeCylinder

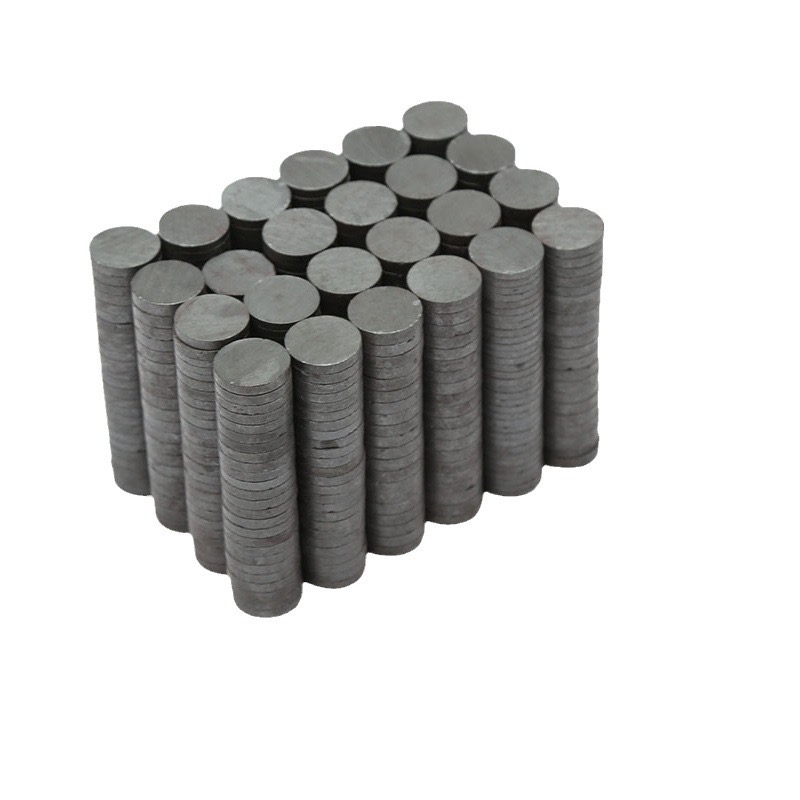

Ferrite Cylinder Magnets

Solid cylindrical ferrite magnets for craft products, teaching tools, holding parts, and repeat carton orders.

Ask for cylinder magnets

ShapeRing

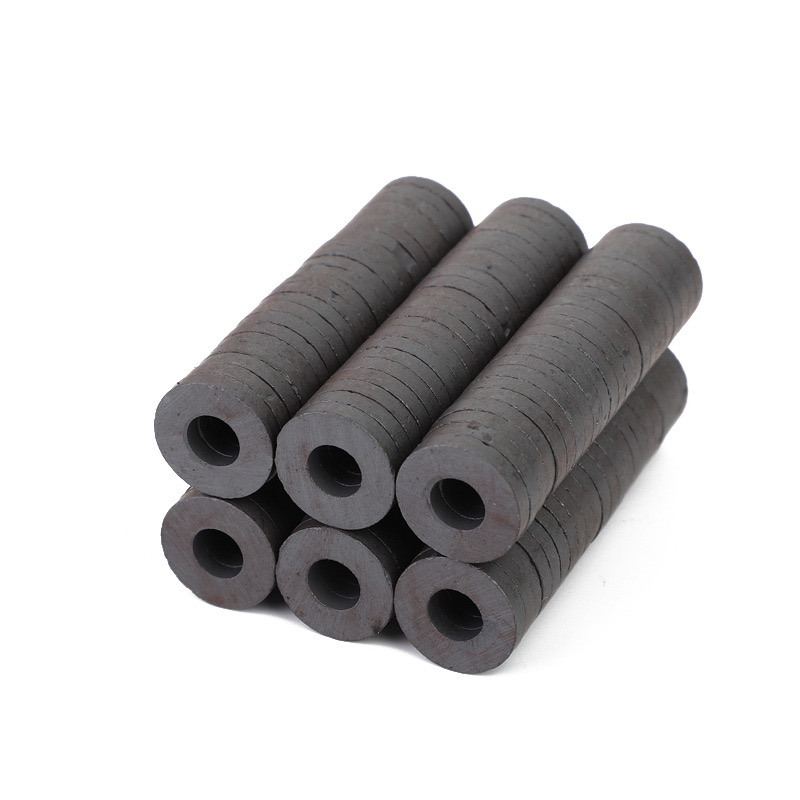

Ferrite Ring Magnets

Ring, tube, and through-hole ferrite magnets for teaching, fixtures, assembly parts, and custom packing.

Ask for ring magnets

ShapeHole

Ferrite Countersunk / Hole Magnets

Ferrite magnets with center holes for screw mounting, display hardware, fixtures, and buyer-specific assemblies.

Ask for hole magnets

B2B Buying Guide

Ferrite magnet details buyers should confirm before quotation.

Share these details with CIYI to reduce back-and-forth communication and get a more practical sourcing reply.

Common Shapes

Arc / tile magnets for motor and fixture applications
Block, bar, disc, ring, cylinder, and hole magnets

Common Grades

Y25, Y30, Y30BH, Y33, Y35 and higher ferrite grades
Final magnetic value should be confirmed by drawing and production batch

Magnetization

Axial, radial, multipole, or custom magnetization by application
Motor arc magnets should confirm pole direction clearly

Surface / Finish

Natural ferrite surface, ground surface, or custom treatment by request
Confirm tolerance and appearance requirement before sampling

Quote Tips

For a faster quote, send shape, size, grade, quantity, magnetization direction, tolerance, packaging method, and target use. Price, MOQ, and lead time are confirmed by order details.

Magnetic Grade Table

Ferrite / oxide magnet grade reference.

Typical magnetic ranges for sourcing reference. Final values should be confirmed by grade, drawing, and production batch.

Material grade	Common equivalent	Br mT / kG	Hcb kA/m / kOe	Hcj kA/m / kOe	BHmax kJ/m3 / MGOe	Typical use
Y8T	C1 low energy ferrite	200-235 / 2.0-2.35	125-160 / 1.57-2.01	210-280 / 2.64-3.52	6.5-9.5 / 0.8-1.2	Low-cost holding, teaching, and light magnetic parts
Y10T	C1-C2 ferrite	200-235 / 2.0-2.35	128-160 / 1.61-2.01	210-280 / 2.64-3.52	6.4-9.6 / 0.8-1.2	General low-energy ceramic magnet applications
Y20	C5 ferrite	320-380 / 3.2-3.8	135-190 / 1.70-2.39	140-195 / 1.76-2.45	18.0-22.0 / 2.3-2.8	Standard blocks, discs, rings, and teaching products
Y25	C5-C8 ferrite	360-400 / 3.6-4.0	135-170 / 1.70-2.14	140-200 / 1.76-2.51	22.5-28.0 / 2.8-3.5	General purpose ferrite blocks, rings, discs, and kits
Y30	C8 ceramic magnet	370-400 / 3.7-4.0	175-210 / 2.20-2.64	180-220 / 2.26-2.76	26.0-30.0 / 3.3-3.8	Cost-effective industrial ferrite magnets and retail packs
Y30BH	High coercivity ferrite	380-390 / 3.8-3.9	223-235 / 2.80-2.95	231-245 / 2.90-3.08	27.0-30.0 / 3.4-3.8	Motor arcs, fixtures, parts needing better demagnetization resistance
Y30H-1	High coercivity ferrite	380-400 / 3.8-4.0	230-275 / 2.89-3.46	235-290 / 2.95-3.64	27.0-32.0 / 3.4-4.0	Ferrite arcs, motor parts, and higher coercivity assemblies
Y30H-2	Higher coercivity ferrite	395-415 / 3.95-4.15	275-300 / 3.46-3.77	310-335 / 3.90-4.21	27.0-32.5 / 3.4-4.1	Motor segments, magnetic assemblies, and demagnetization-resistant parts
Y32	C8-C10 ferrite	400-420 / 4.0-4.2	160-190 / 2.01-2.39	165-195 / 2.07-2.45	30.0-33.5 / 3.8-4.2	Higher-output blocks, rings, and standard custom shapes
Y32H-1	High coercivity C8-C10	400-420 / 4.0-4.2	190-230 / 2.39-2.89	230-250 / 2.89-3.14	31.5-35.0 / 4.0-4.4	Higher coercivity ferrite for compact assemblies
Y32H-2	High coercivity C8-C10	400-440 / 4.0-4.4	224-240 / 2.81-3.02	230-250 / 2.89-3.14	31.0-34.0 / 3.9-4.3	Higher coercivity ferrite for arcs and compact assemblies
Y33	High energy ferrite	410-430 / 4.1-4.3	220-250 / 2.76-3.14	225-255 / 2.83-3.20	31.5-35.0 / 4.0-4.4	Higher output ferrite blocks, rings, and custom shapes
Y35	Premium ferrite	430-450 / 4.3-4.5	215-239 / 2.70-3.00	217-241 / 2.73-3.03	33.1-38.2 / 4.2-4.8	Higher performance ferrite assemblies and export orders
Y36	High Br ferrite	430-450 / 4.3-4.5	247-271 / 3.10-3.41	250-274 / 3.14-3.44	35.1-38.3 / 4.4-4.8	High-performance ceramic magnets with stronger residual induction
Y38	High energy ferrite	440-460 / 4.4-4.6	285-305 / 3.58-3.83	294-310 / 3.69-3.90	36.6-40.6 / 4.6-5.1	Premium ferrite blocks, rings, and engineered magnetic products
Y40	Top-grade ferrite	440-460 / 4.4-4.6	330-354 / 4.15-4.45	340-360 / 4.27-4.52	37.5-41.8 / 4.7-5.3	High-output ferrite products where rare earth magnets are not required
